Desolate Motorsports Bronco/F150 4x4 "Super Duty" Straight Axle Conversion Kit

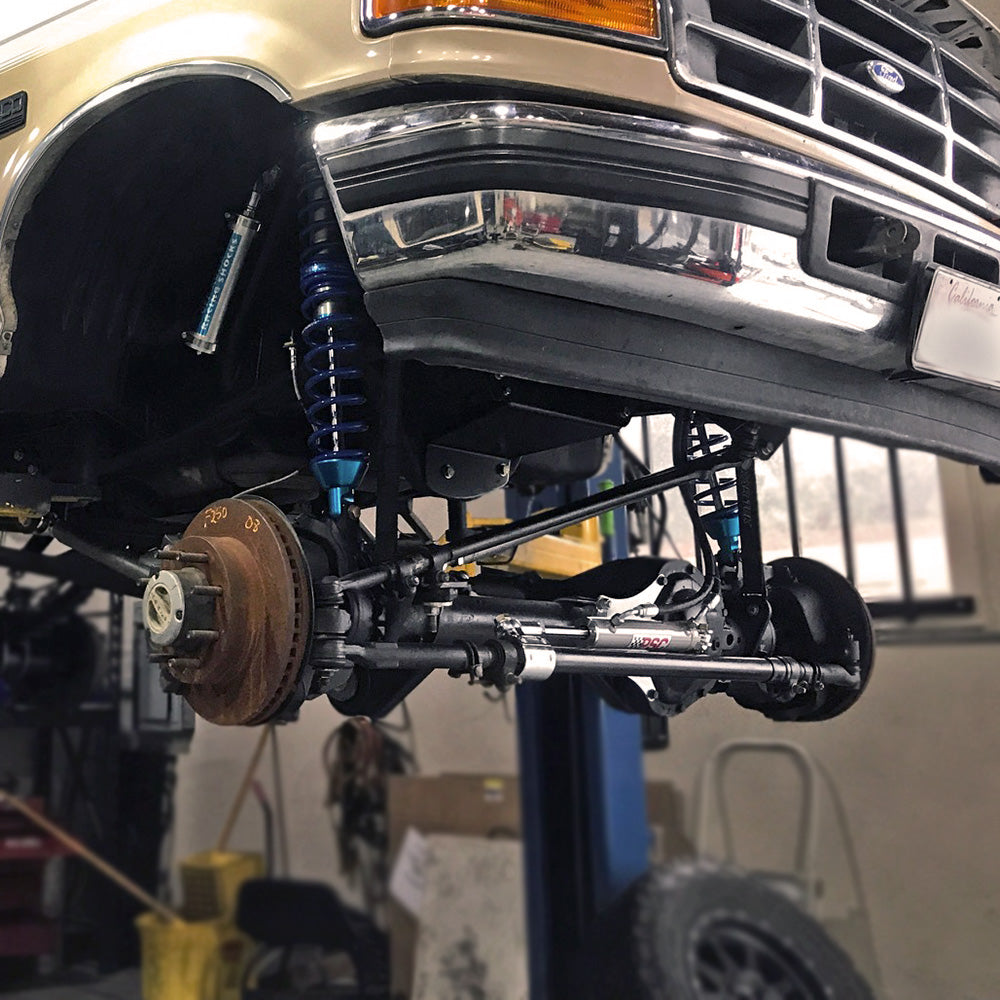

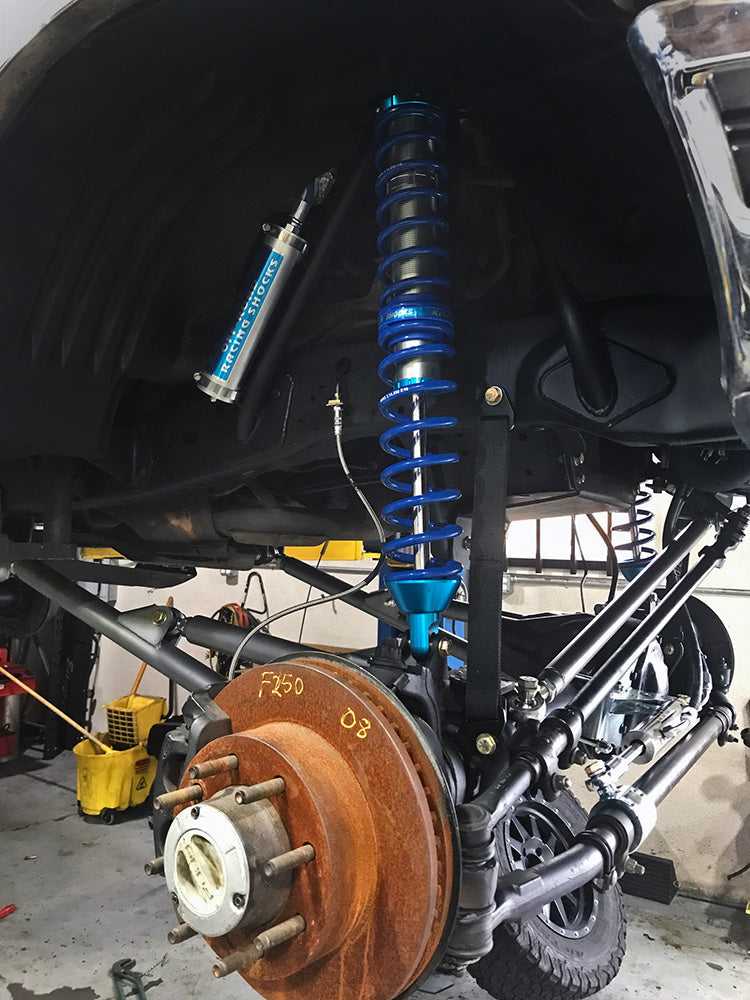

This system will utilize an 05-16 Ford Super duty Dana 60 axle and performance coil over shocks. The kit will provide 4 to 8" of lift giving your vehicle much better ground clearance for rock crawling and trail applications. This  super duty axle changes the lug pattern of your vehicle from 5 to 8 and giving you a much stronger axle, ring gear and huge brakes.

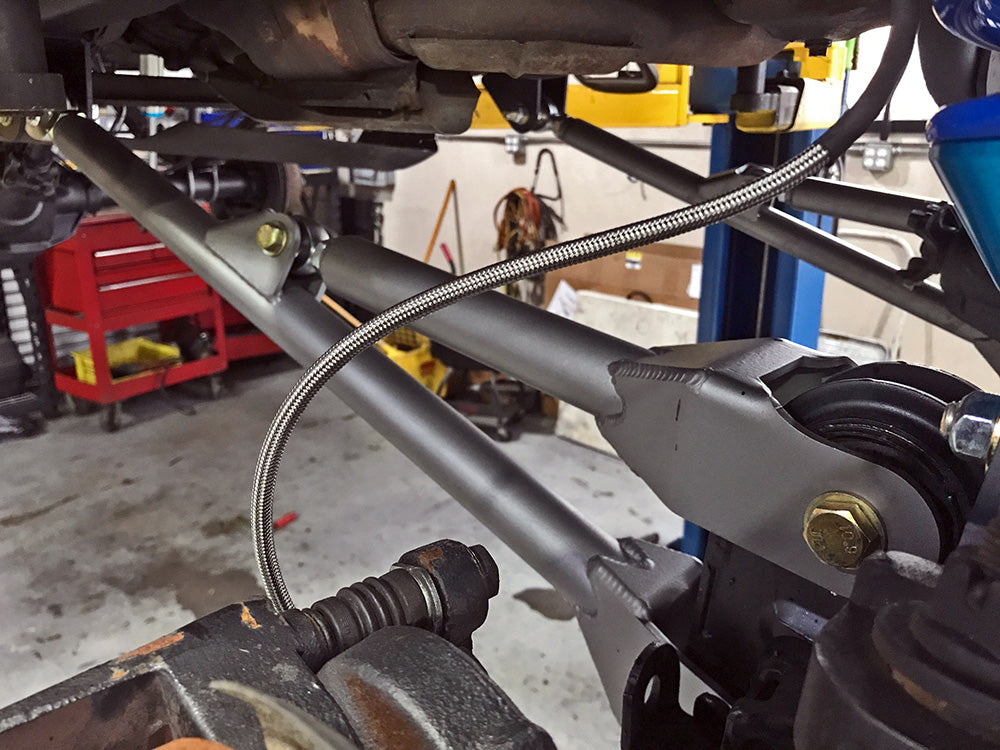

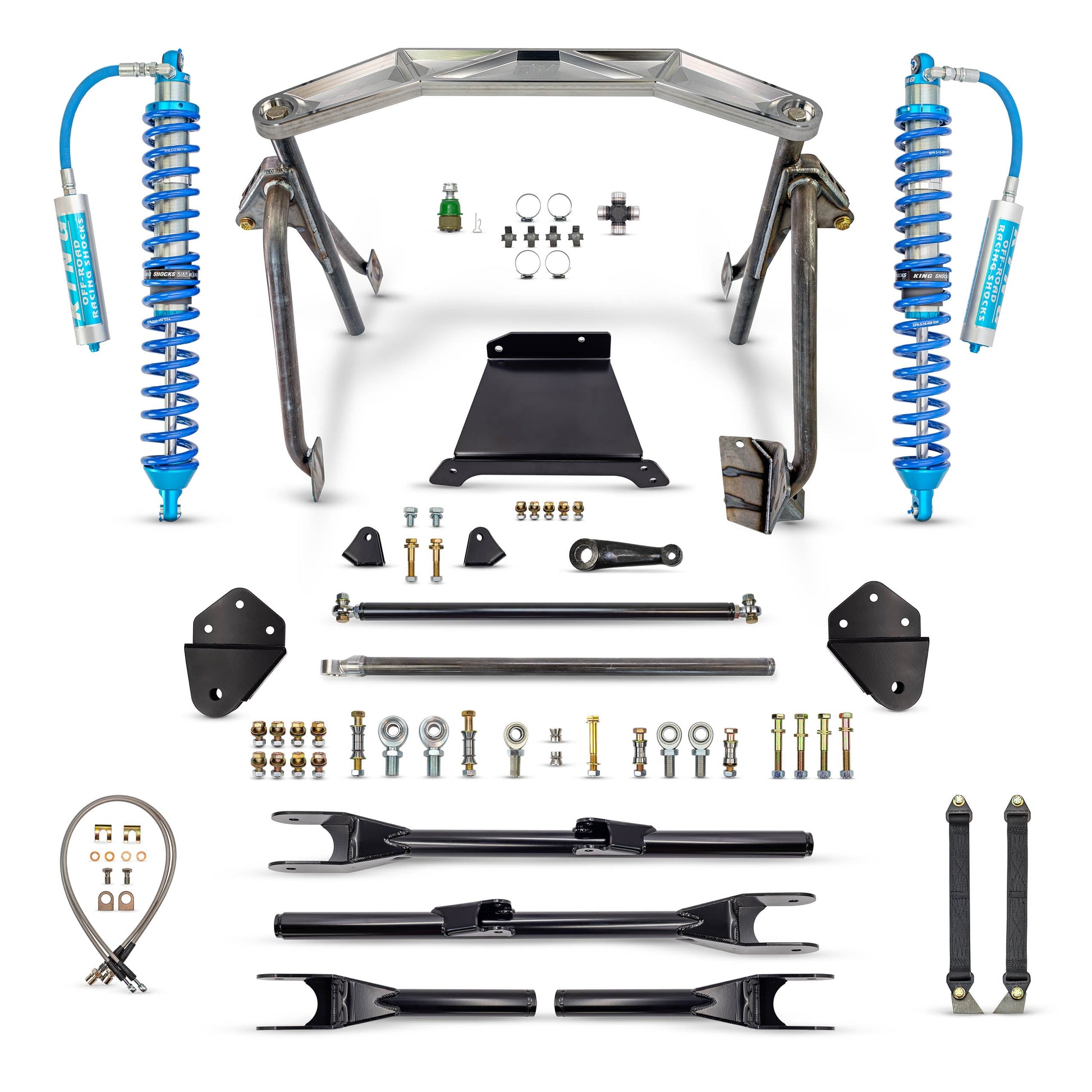

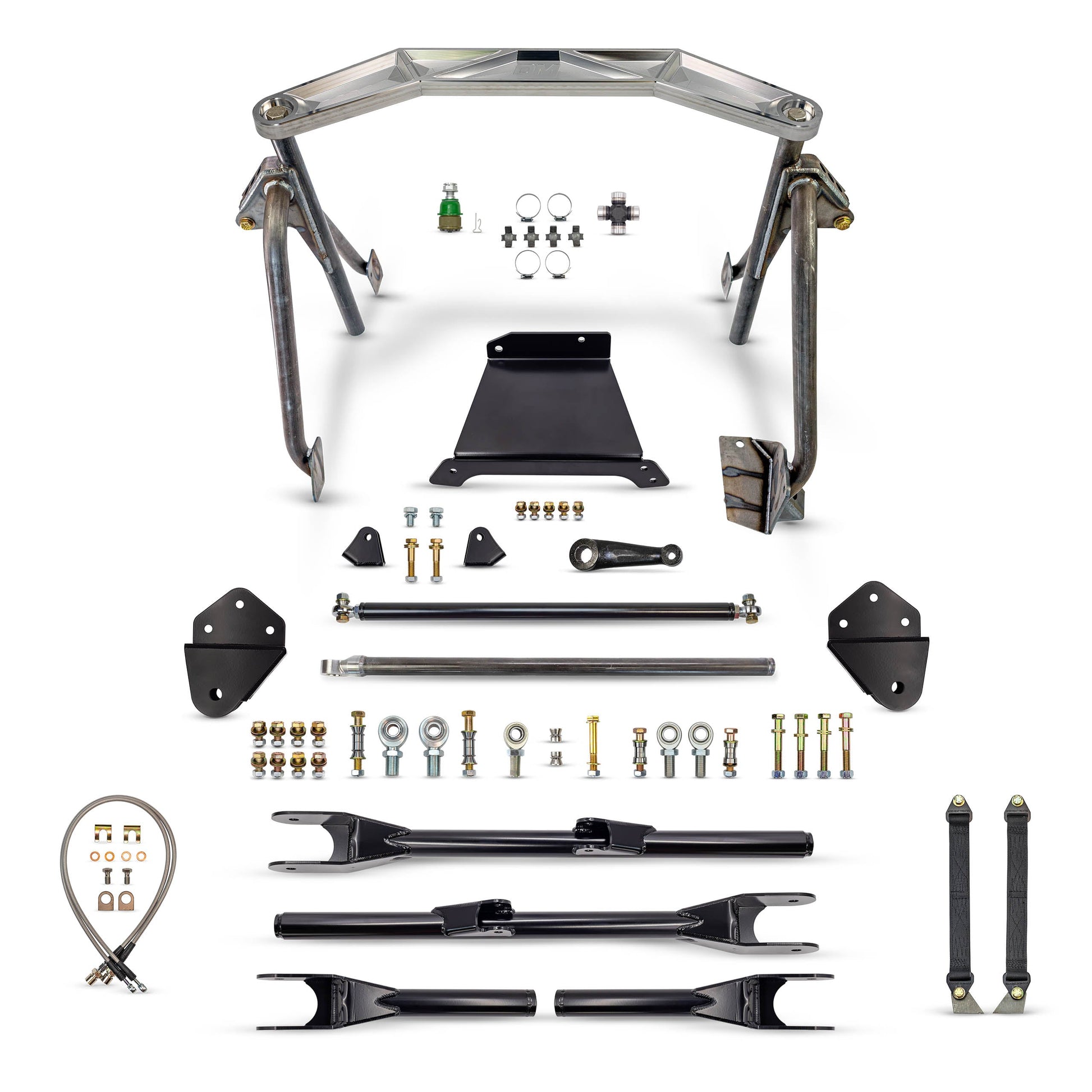

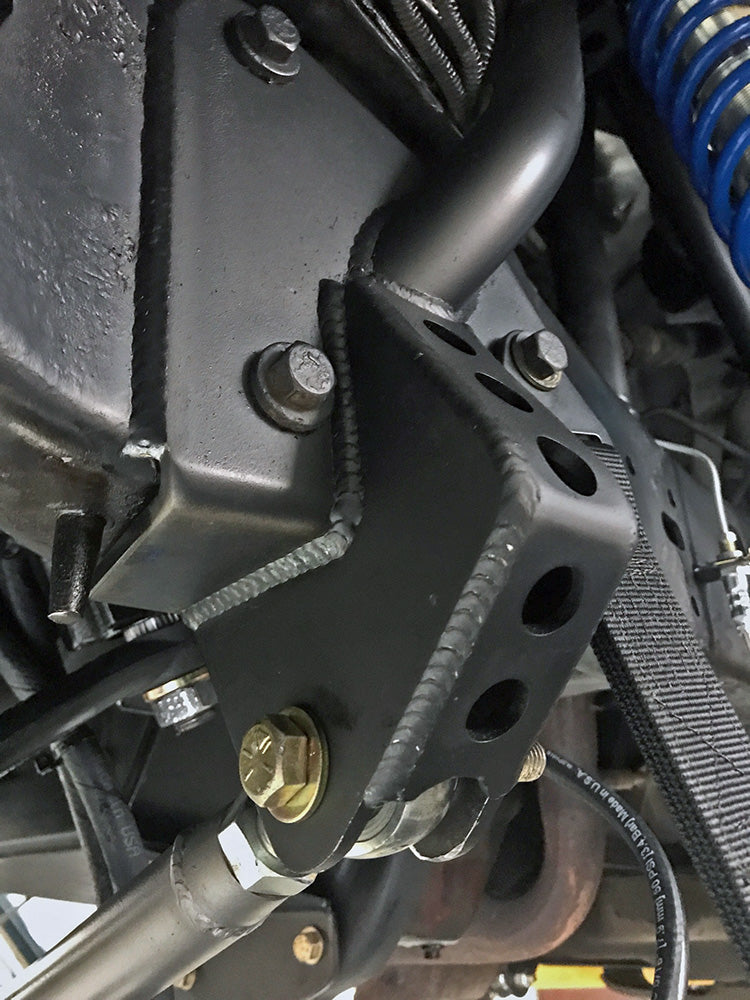

Note: All link arms and brackets come powder coated black now! Shock tower is still raw because it requires welding

Note: Stock Bronco front driveshaft can be utilized by using our conversion U-joint, however applications lifted 6" or higher may need a custom drive line or transfer case indexing ring/cross member modification.  Please contact the shop with any questions.

Note: After purchasing a Desolate Motorsports representative will reach out with questions about your desired tire size, desired lift height and projected usage so we can make any adjustments needed.

FAQ: What parts do you need to supply?

• Complete 2005-2016 Ford F-250 or F-350 front axle including brakes.
• Stock steering/tie rods and drag links from same truck
• Rear axle to match 8 lug pattern on front axle

Features:

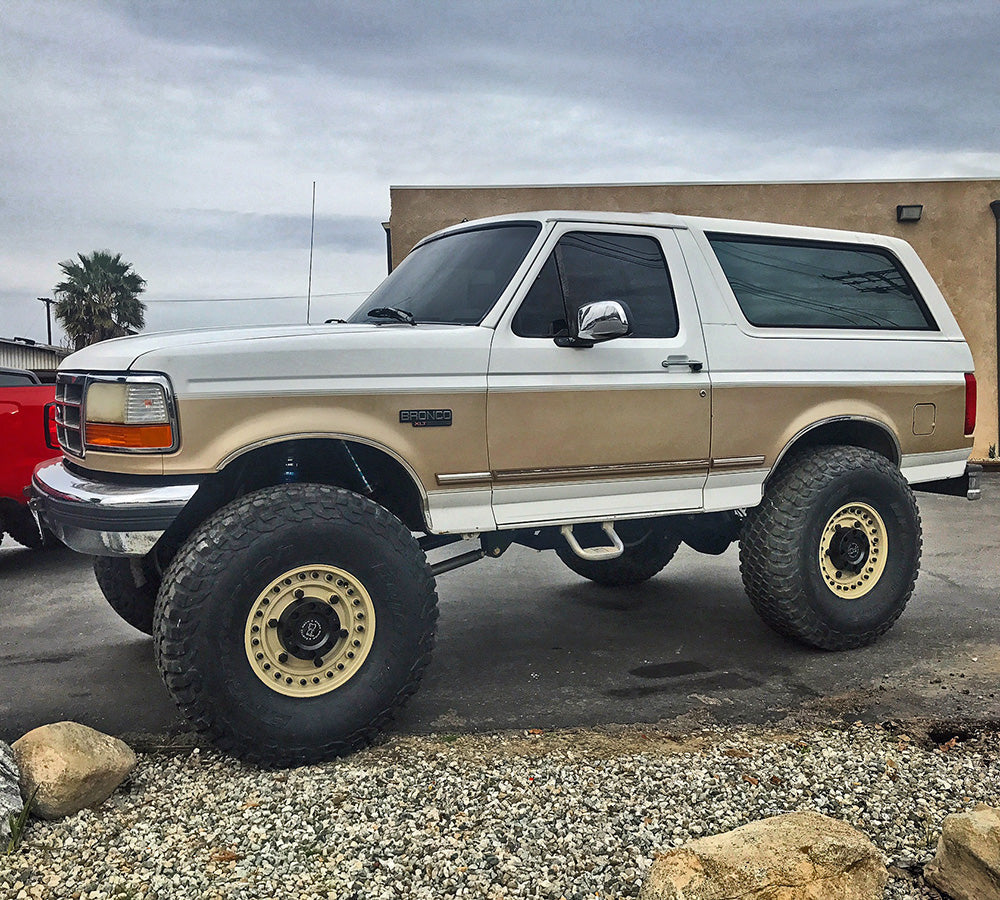

• 4-8" of Lift

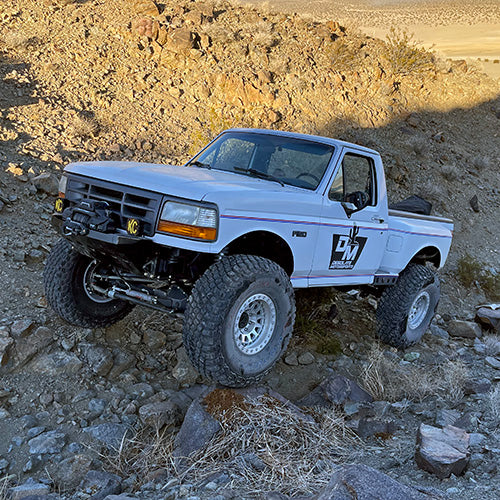

• Better for rock crawling and trail applications
• Track width increased approx. 4"
• 8 Lug Wheel Pattern
